WL-QFT Flowtork

Flowtork : Water Level Control Systems : WL-QFT-Series

  1. Flowtork has specially designed this product for automation of motor/pump, which maintain constant reserve of water in storage tanks.
  2. Automatic water level controller is used to automatically fill the over head tank as and when it gets empty and monitor the water level in it.
  3. Automatic water level controller switches ON the motor/pump when the water level in the overhead tank drops below pre fixed low level(on point) and puts off the motor/pump when water level rises up to pre fixed high level (off point) motor also switches off when the sump water is exhausted before filling overhead tank, pump running dry, Mains voltage fluctuations.
  4. State of the art, digital technology, advanced microcontroller based products.
    The system is very versatile, A number of tailor made variations like control of multiple tanks or multiple pumps are possible.

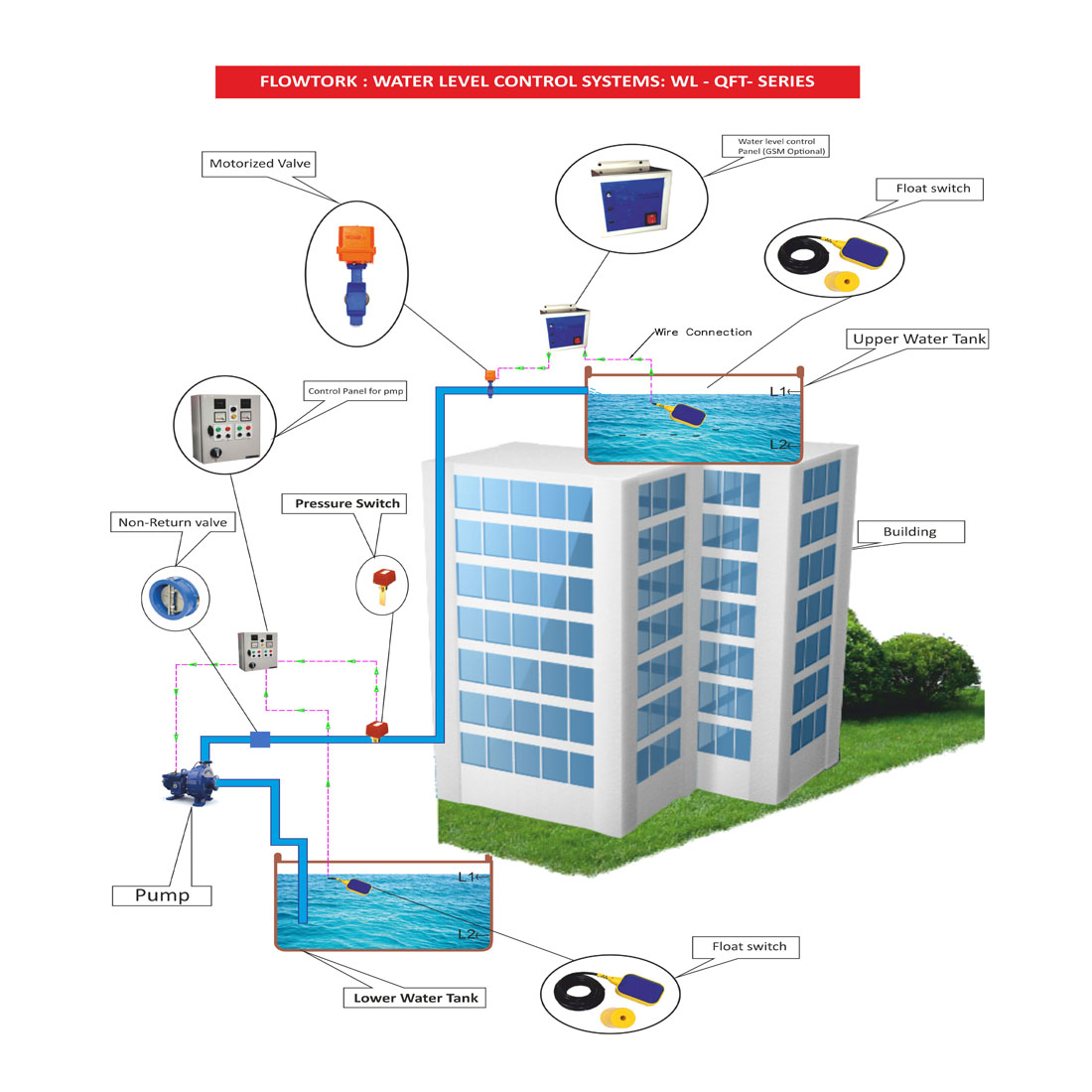

The Assembly Consists of Following Instruments

  1. Single Phase Electrical Actuator
  2. Butterfly valves : As per required pipe - line sizes and MOC
  3. Wall mounted control panel : Having Provided : This system consists of : Indications : Water : Empty/Full, Selector Switch : on/off, Relays, Level Sensors for high & Low water level in tank.
  4. Level Sensors: Float type which can be set for two water level i.e high and low level of water in the tank with single sensor.
  5. Required Cable Schedule: will be 1 Sq mm x 6 core.

Advantages & Special Features of Automatic Water Level Controller

  1. Easy installation
  2. Low maintenance
  3. Compact and elegant design
  4. Fully automatic
  5. Saves water, motor and energy
  6. Increases pump life
  7. Avoids seepage of water from roofs & walls due to overflowing tanks
  8. Ideal for difficult to access overhead
  9. Automatic water level controller will automatically start the pump as soon as the water level falls below the predetermined level (usually 1/2 tank) and shall switch off the pump as soon as tank is full or water level in the lower tank is at below minimum level
  10. Automatic water level controller allows you to decide the water storage levels for operations of the pump in the overhead tank and the sump
  11. Flow indication (running light), voltage level indication
  12. Auto/Manual operation soft switch for special operation like watering the plants or car washing from pump
  13. The Automatic water level controller completely stops overflow of water from the over head tank or dry running of pump there by saves electricity and water
