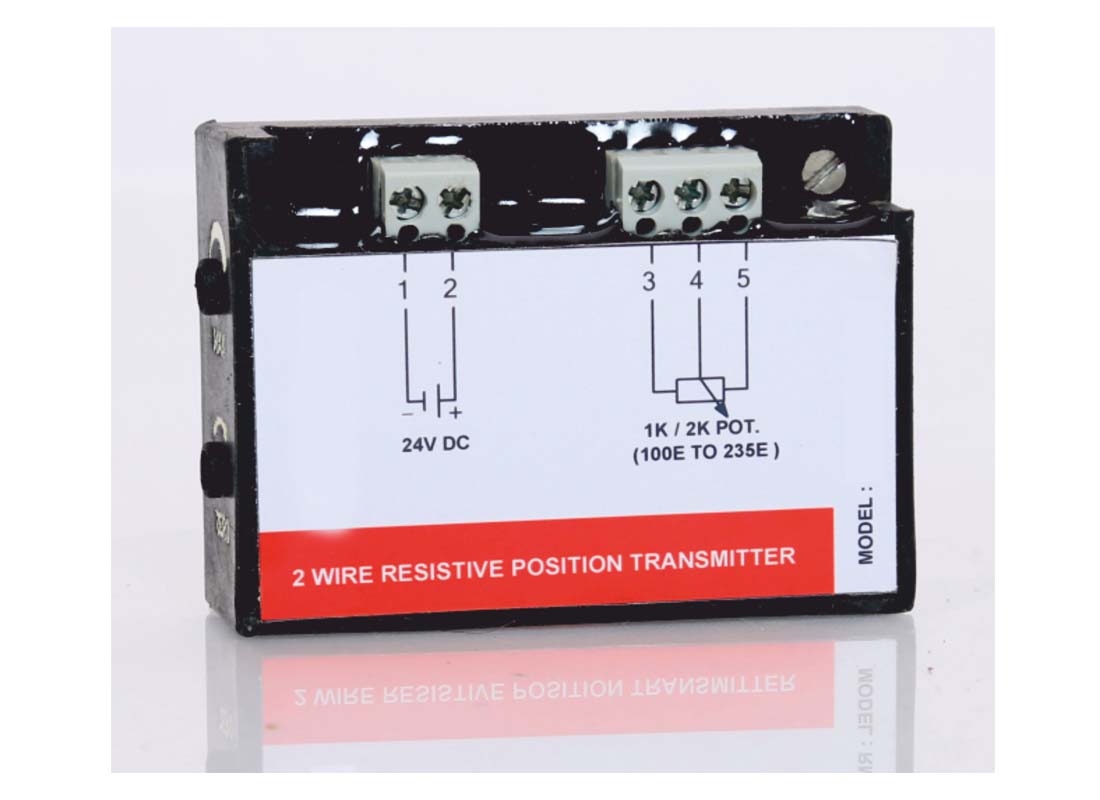

Position Transmitter-Two Wire : Model : FPT-100

    Model: FPT-100: Actuator Mounted Electronic Device to convert Resistance input into Current output.

    A change in resistance: value 100-235 Ohms of potentiometer (other values are also available) which convert 4-20mA output signal. The maximum load resistance will be 500 W. The span and zero adjustment/setting are provided on this device. The supply voltage of the transmiiter: 12 to 36 V D.C


    Technical Specifications

  1. Output : 4 to 20 mA DC
  2. Resistive Input : 100-235 Ohms
  3. Supply : 12 to 36 V D.C
  4. Close/Zero : 4 mA and Full Open/Span : 20 mA
Positioner Unit

Positioner Unit : Panel/Integral Starter Actuator Mounted : Single Phase Series: FPS-01: And Three Phase Series: FPS-03

  • These positioner are available for both single phase and three phase actuator
  • These are electronic positioner units Panel or Actuator mounted (Inbuilt in Integral Starters)
  • This positioner units accepts incomming command signal: 4-20 mA or 0-10 V DC / 0-5 V DC the same convert into 230 V AC Bi-directional forward and reverse operations of relays for open and close positions.
  • Re-transmission output is self powered with 500 Ohms load (Max) having dead band, time-delay and feedback signal.

    Technical Specifications

  1. Supply: 230 V AC, 50 Hzs
  2. Input Signal: 4-20 mA or 0 to 10 V DC (Full close position: 4 mA and full open position: 20 mA)
  3. Output Signal: 4-20 mA or 0 to 10 V DC
  4. Selection Mode : Auto/Manual : Available
  5. Indications: Digital display of open/close/opening/closing with display of input command signal
  6. Indicator: 3.1/2 digits for 0 to 100% opening of final control element
  7. Fuse protection provided

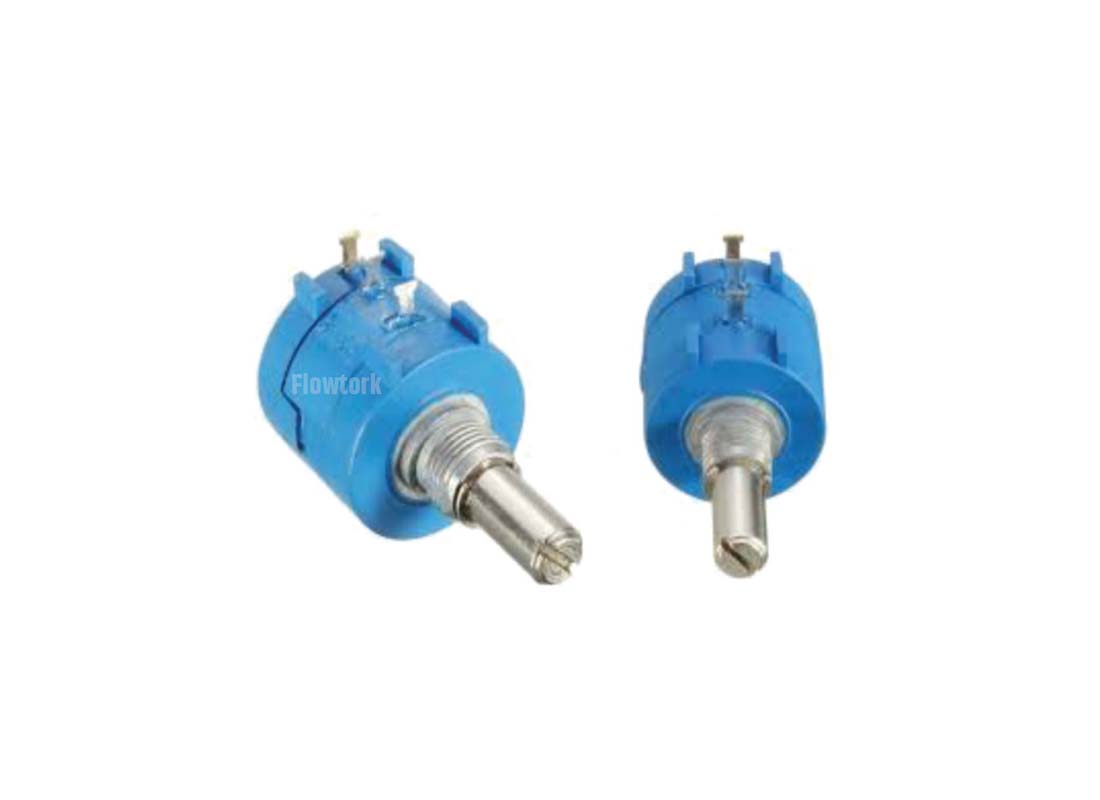

  • Resistive ohmic transmiiter with single turn and multi-pot with pot gear for required resistive ohmic output.
  • Travel & Torque Limit Switches: 2No+2Nc : 02 nos available as standard and : 1No+1Nc : 02 nos can be provided.
